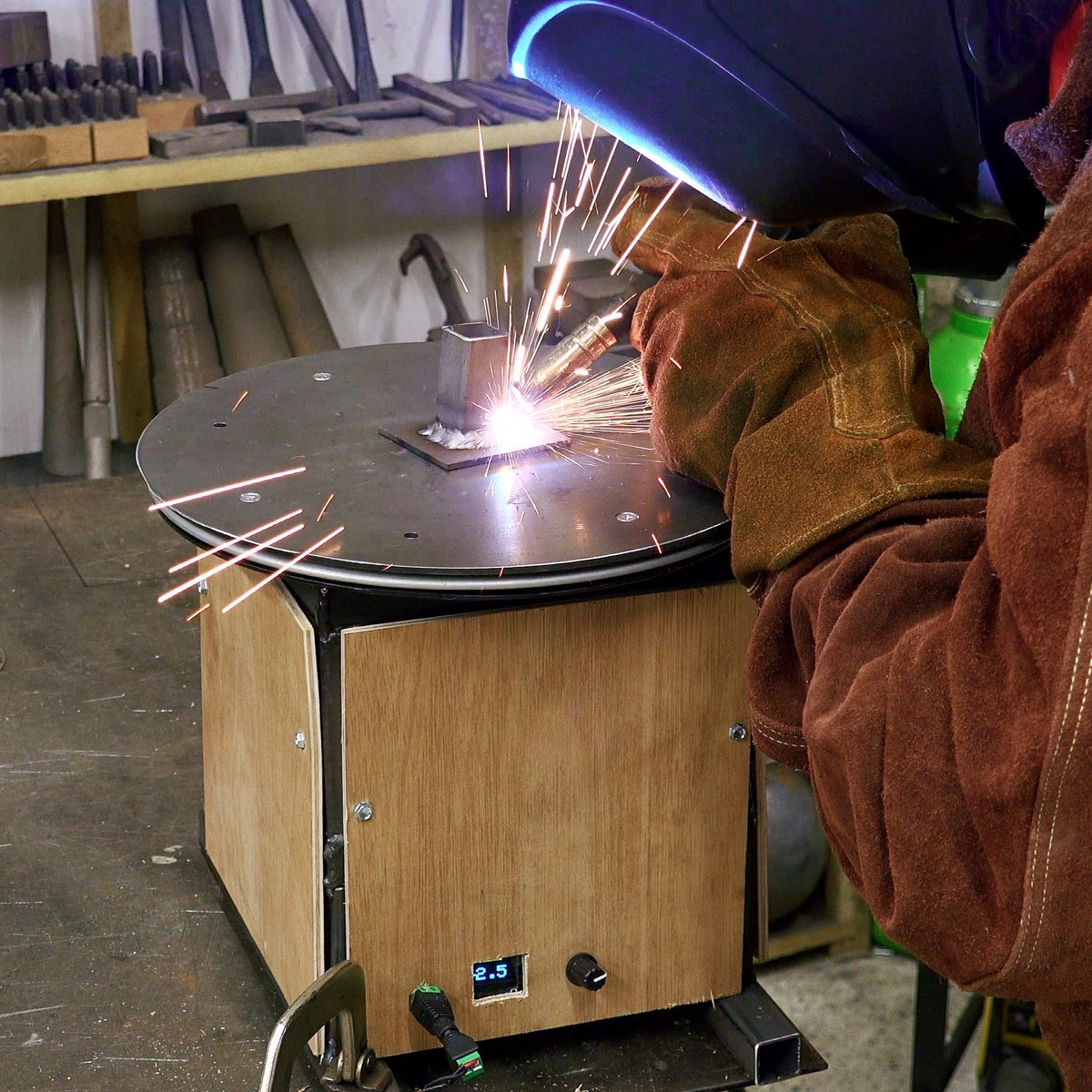

Rotary Welding Positioner Turntable - Project Notes

Rotary Welding Positioner Turntable - Project Notes

$5.00
$5.00
Sale Sold out
Taxes included.

Project notes for the DIY project in Greenhill Forge's Motorized Welding Table video on YouTube.

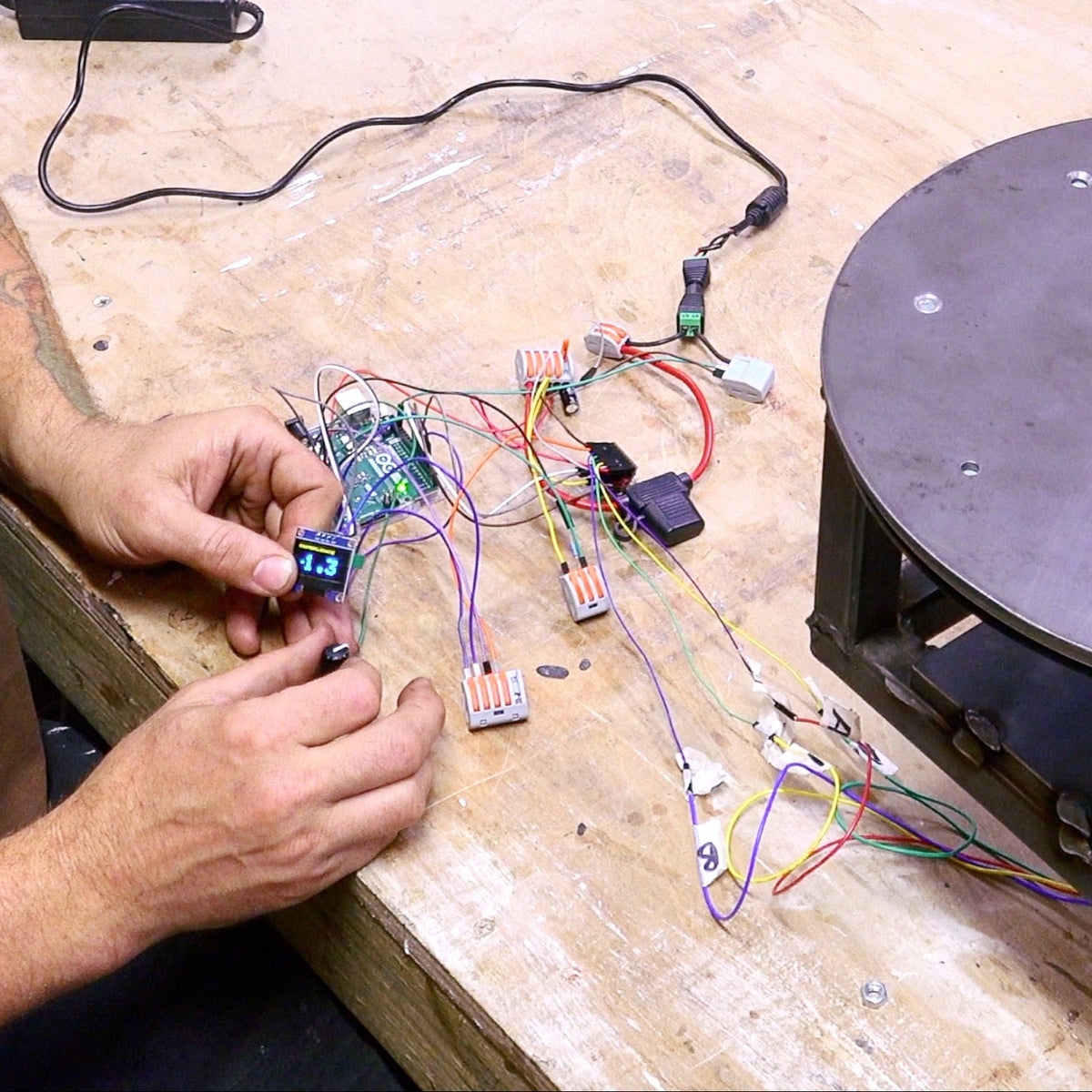

These project notes focus on the electronic motorized Arduino-controlled system, NOT the physical turntable build, which will vary in size according to your preferences and materials.

You'll receive a zip file with 7 items, including:

  • Complete parts list with US and UK links
  • Wiring diagram + detailed pin-by-pin wiring list: one formatted for printing, plus one high-res version so you can zoom in
  • Step-by-step build guide, written for total beginners — no prior Arduino experience needed
  • Full Arduino sketch, in two versions: text and .ino
  • Bonus videoof the wiring set-up

Sales from this pdf go directly into making more videos, so thanks for supporting Greenhill Forge!

These are supplementary project notes for entertainment purposes only.

Instantly accessible after purchase. If any files are ever updated, you’ll automatically receive the latest version by email.
